​POS SmartCash Connector

How it works

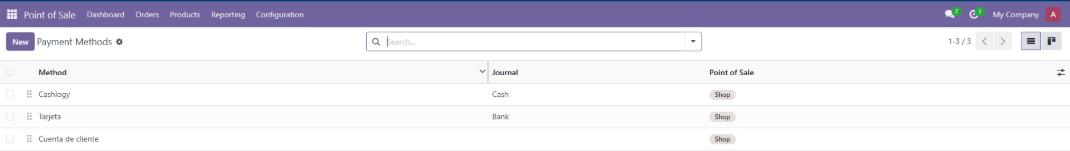

When installing the module, You must create a payment method called Cashlogy. To ensure optimal control of the cash in the drawer, the payment method must be of type 'Cash' and must replace the default cash payment method in the Point of Sale.

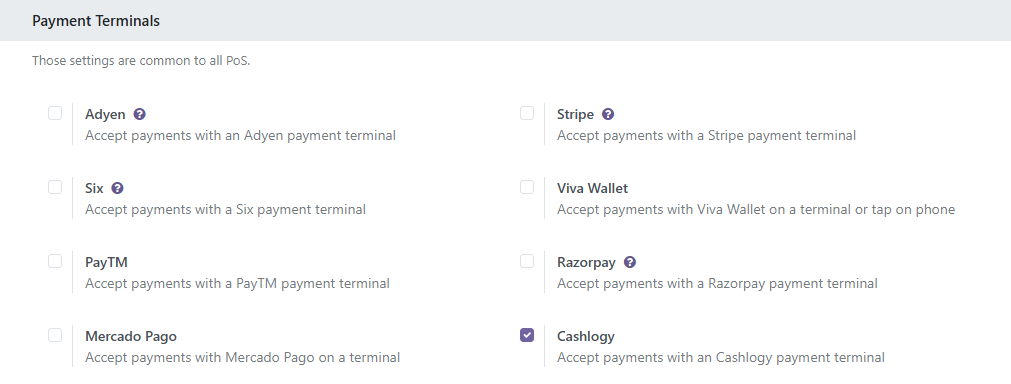

The connector is designed with a new architecture based on the POS payment terminals. Therefore the communication is made from the web browser.

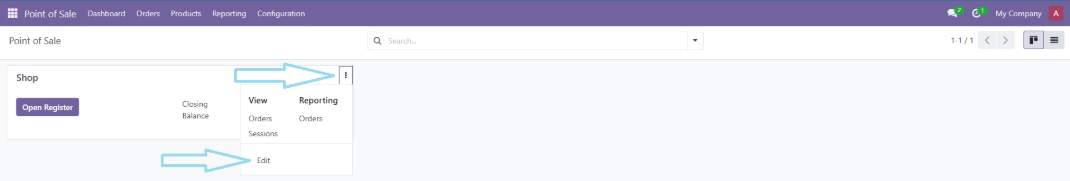

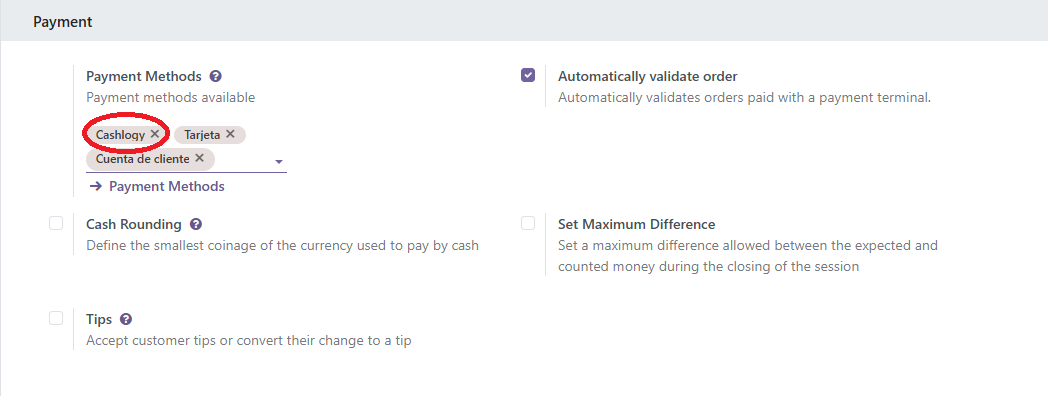

This payment method must be configured manually in the POS where you want to use .

The module establishes the connection between Odoo and the gateway, which is the link between Odoo and the drawer. The check allows you to go directly to the ticket once paid. The installation of the gateway license and configuration is included in the module price, and it will be configurated by our technical team.

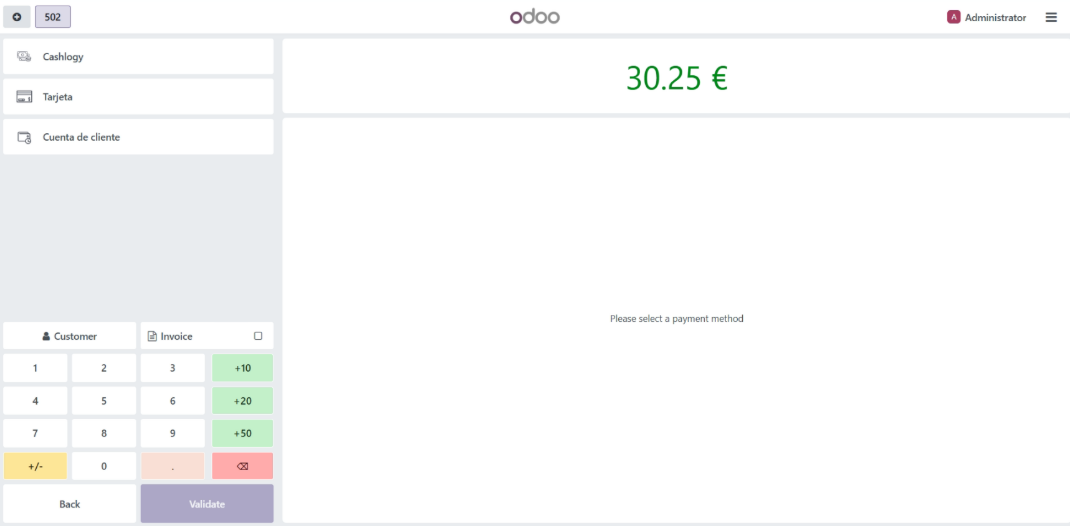

Once the gateway is configured, SMARTCASH can be used as a payment method to charge its customers.

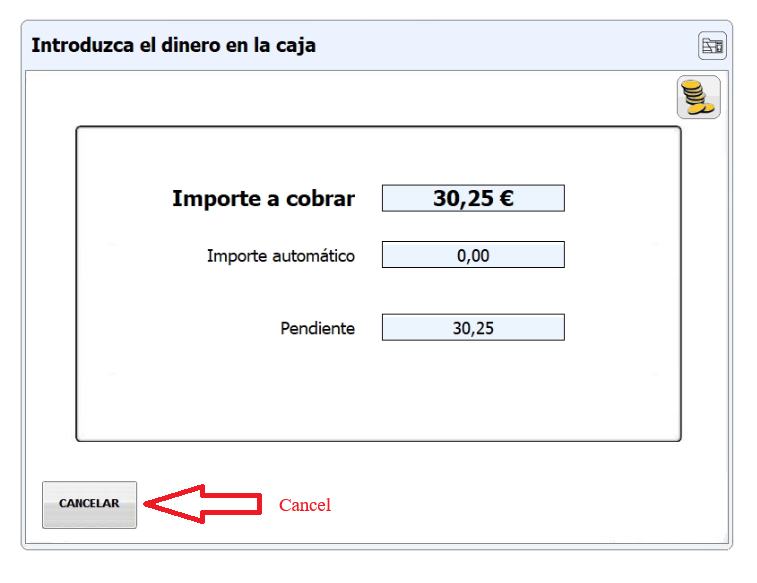

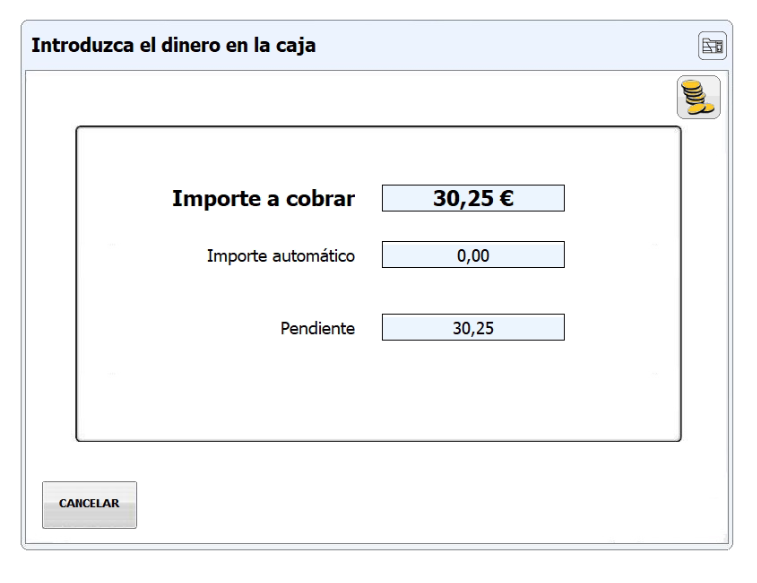

Upon selecting the payment method, the system will connect to the cash drawer and display the Cashlogy interface, requesting the amount to be entered.

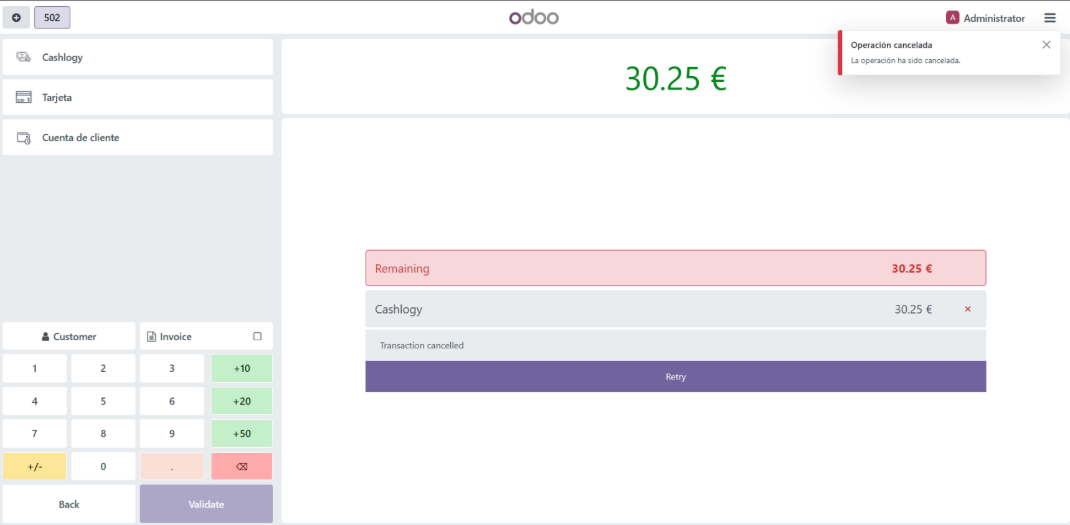

You can cancel the payment in any moment you want.

You can retry the payment after cancelling it.

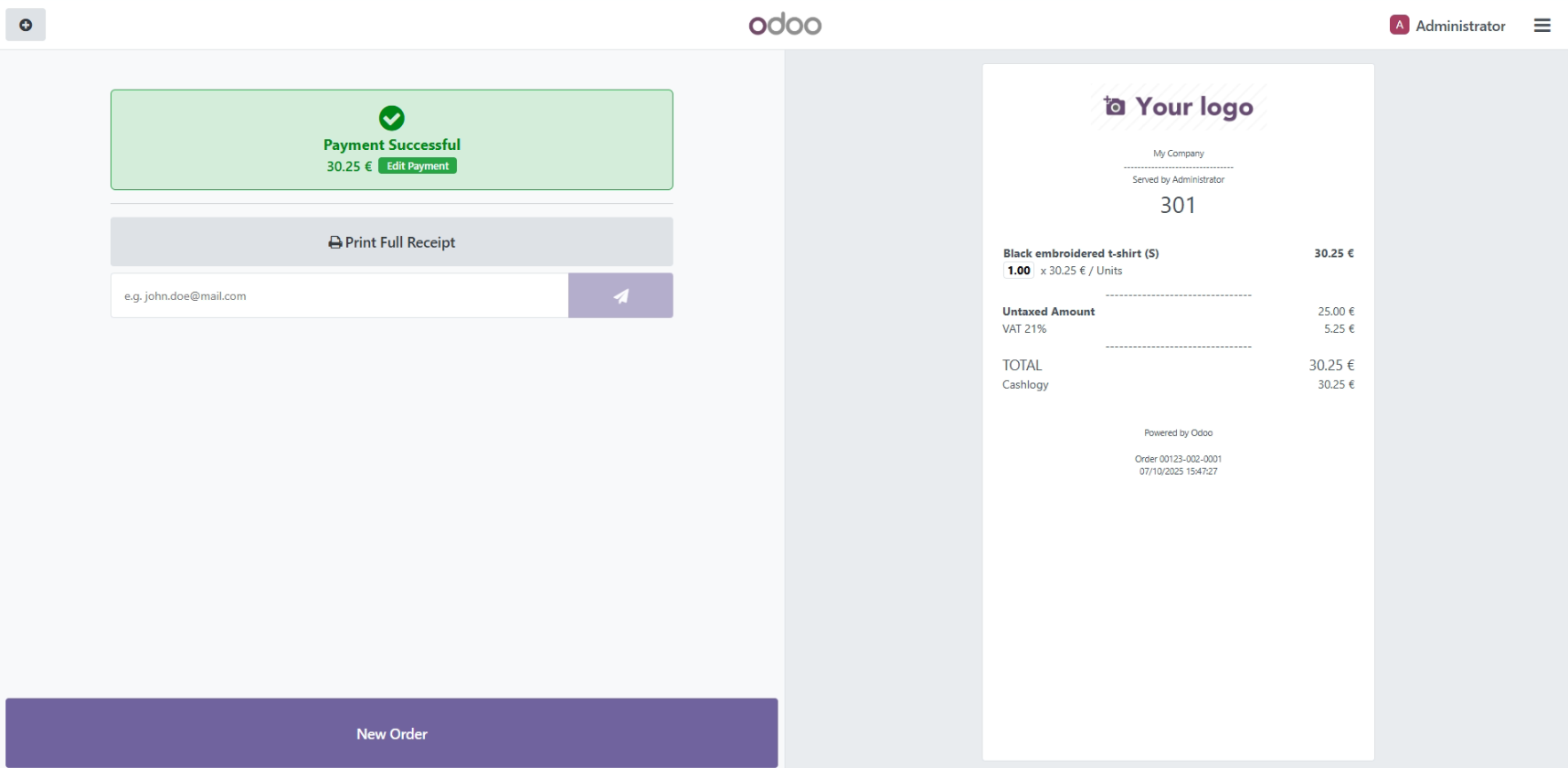

At the time the payment is made in the drawer, we will be notified immediately that the payment is made.

Additional features

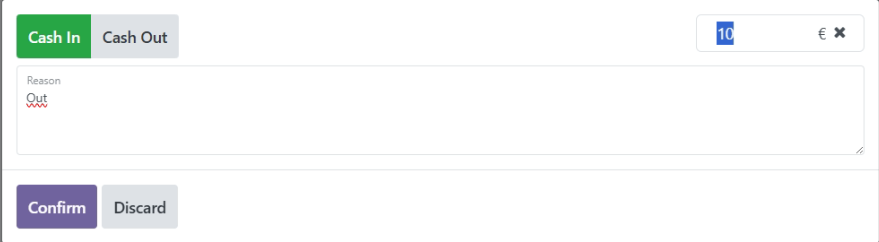

You can use the Cash Out feature to withdraw money from the cash drawer.

You can use the Cash In feature to deposit money into the cash drawer.

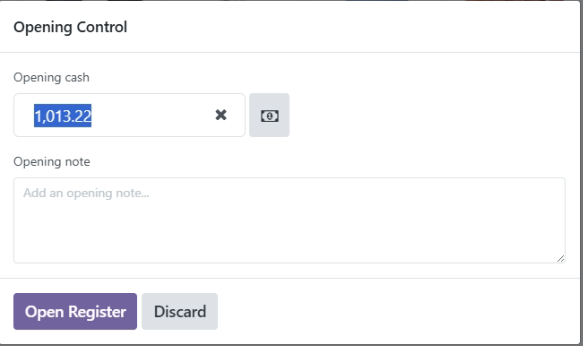

The cash drawer automatically detects the current cash amount and sets it as the initial balance in the cash control session..

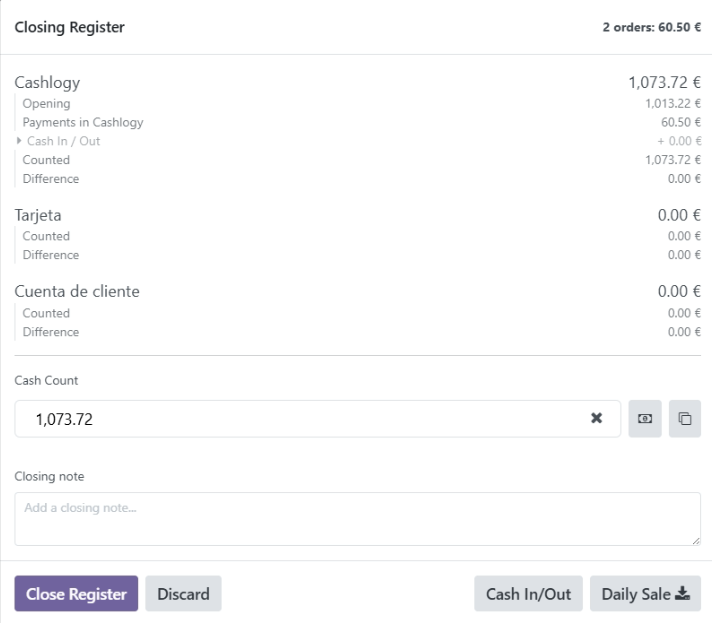

Likewise, it automatically retrieves the cash amount in the device at Point of Sale closing, enabling reconciliation with all transactions processed during the session.

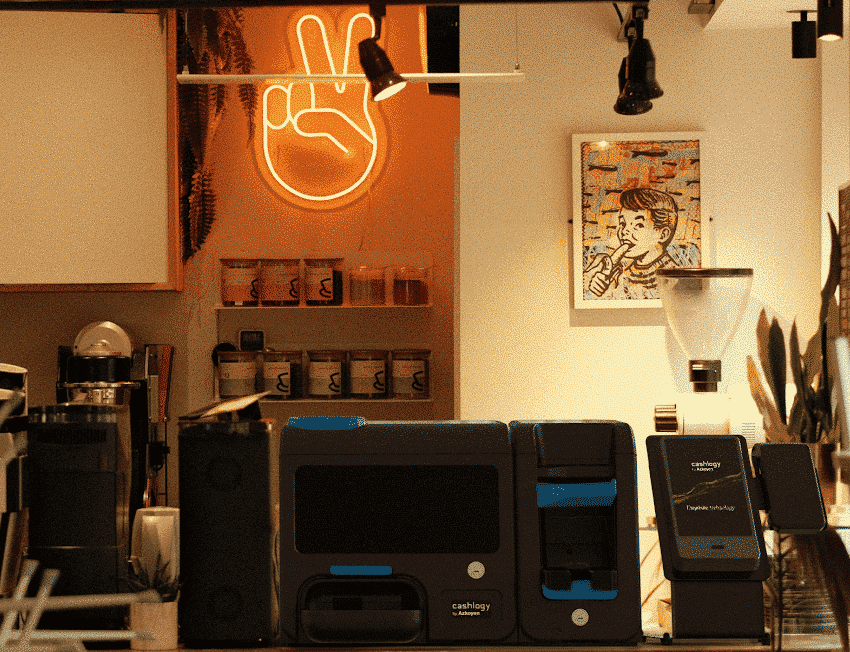

Compatible smart drawers

These are all machines compatible with our solution

We advise you to contact us to check the compatibility of the system

Dependencies

This module depends on the Cashlogy POS SmartCash (Terminal) module to function and cannot be used on its own.

Free Support

You will get free support and assistance in case of any issues
